商品の詳細:
お支払配送条件:
|
| 製品名: | 地中直埋XLPE絶縁電力ケーブル | 応用: | 直接埋設地下配電 |
|---|---|---|---|
| 導体材質: | クラス 2 撚り線アニール銅、IEC 60228 | 定格電圧: | 0.6/1kV(うーん1.2kV) |
| コアと断面: | 4×240mm2 | 断熱材: | XLPE、公称厚さ 1.7 mm |
| アーマータイプ: | 亜鉛メッキ鋼線外装、2.5 mm ワイヤー | アウターシース: | 黒色 PVC、UV 安定化、公称 2.2 mm |
| 設計基準: | IEC 60502-1 | 最大導体温度: | 連続90℃、短絡250℃ |
| ハイライト: | Underground XLPE Insulated Power Cable,Direct Burial XLPE Insulated Power Cable,Armoured 4x240mm2 XLPE Insulated Power Cable |
||

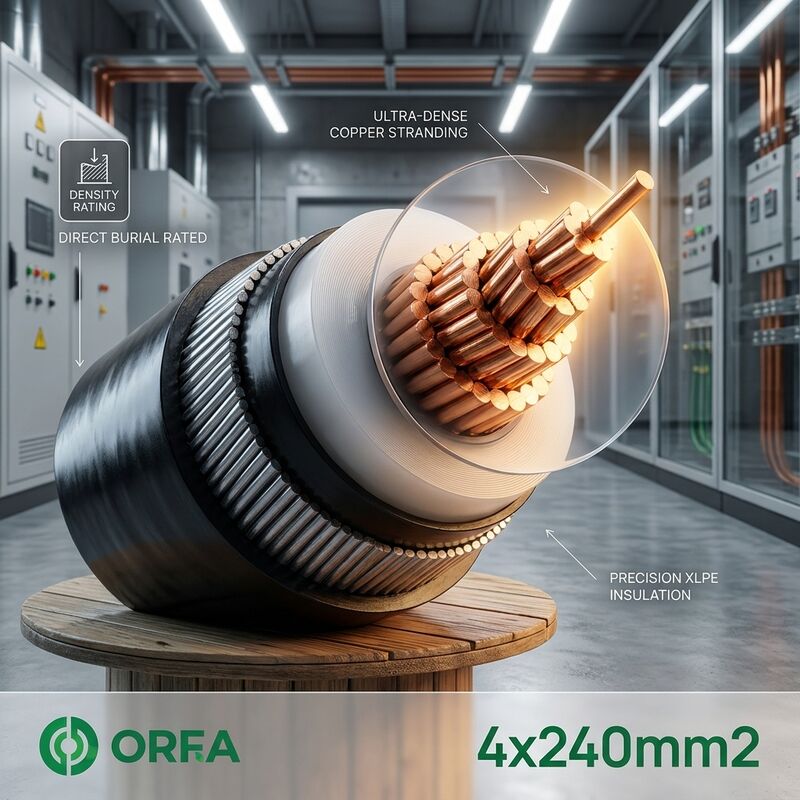

Product Overview This four core 240mm2 copper cable is engineered for direct burial feeders in 0.6/1kV distribution networks, where soil pressure, backfill stones and occasional vehicle loading are everyday risks. The stranded class 2 copper conductor carries heavy feeder current with a voltage drop that stays under one percent on a 400 m run, and the extruded cross-linked polyethylene insulation keeps dielectric loss stable through decades of daily thermal cycling. Each core
