Shenghua 26/35kV Aluminum XLPE Cable for Seismic Zones

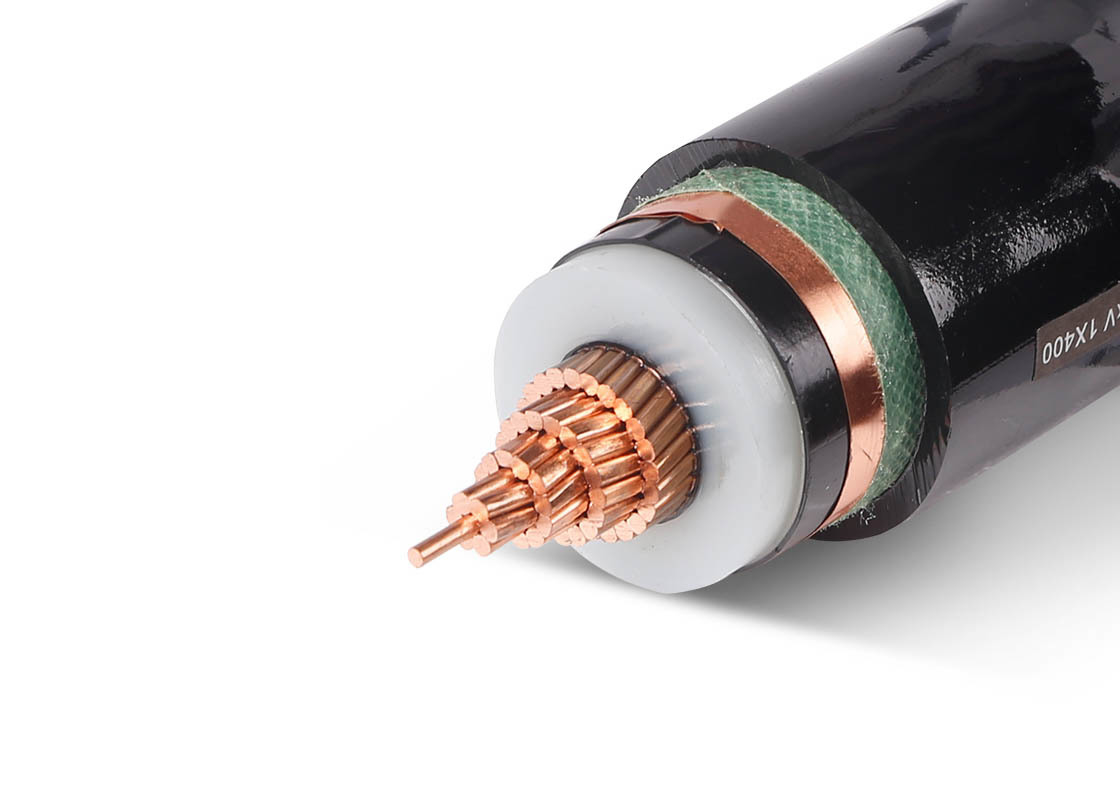

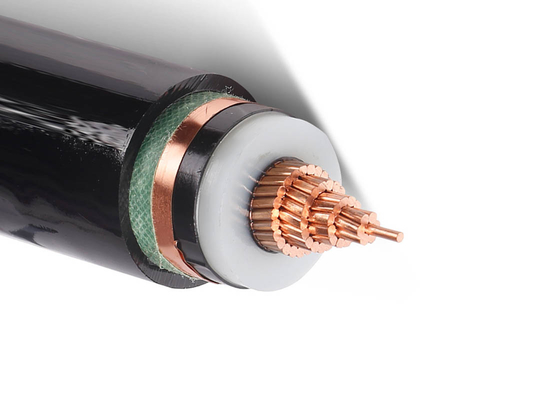

大画像 : Shenghua 26/35kV Aluminum XLPE Cable for Seismic Zones

商品の詳細:

起源の場所:	上海,中国
ブランド名:	SHANCABLE
証明:	ISO,CE,IEC,TUV,KEMA
モデル番号:	YJV, N2XSY

お支払配送条件:

最小注文数量:	交渉可能
価格:	交渉可能
パッケージの詳細:	木製の太鼓
受渡し時間:	10日
支払条件:	L/C,T/T
供給の能力:	100km/週

連絡先

詳細製品概要

定格電圧:	26/35kV	断熱材の色:	自然またはカスタマイズ
コアマーク:	三芯用カラーテープ	ケーブルマーク:	インク印刷や彫刻
外殻色:	黒色またはカスタマイズ	ドラムの長さ:	ドラムあたり300m
株式会社:	シェンフアグループ	Brand:	Shケーブル
ハイライト:	26/35kV aluminum XLPE power cable , seismic-resistant XLPE insulated cable , aluminum power cable for seismic zones

Shenghua 26/35kV Aluminum XLPE Cable | Seismic & Salt-Corrosion Immune (IEC 60502)

Product Specifications

Attribute	Value
Rated Voltage	26/35kV
Insulation Color	Nature or customized
Core Mark	Color Strip for three core
Cable Mark	Ink printing or Embossing
Outer Sheath Color	Black or customized
Drum Length	300m per Drum
Corporation	Shenghua Group
Brand	SH Cable

Product Overview

Medium Voltage 26/35kV AL/XLPE/CTS/PVC with Stranded Conductor Rigid

Shenghua redefines grid survivability with its triple-shielded aluminum XLPE cables, engineered to conquer seismic shifts, mining stress, and coastal erosion. Trusted in 60+ geologically volatile regions and compliant with IEC 60502-2, KEMA, and GB/T 12706, these cables merge 40% cost-efficiency vs. copper with 50-year lifespans in corrosive zones.

Material Science: Engineered for Geological Warfare

Aluminum Conductor Superiority
- Cost-Saving Durability: Compact stranded aluminum (IEC 60228 Class 2) slashes installation costs by 40% while achieving ultra-low resistance (0.0778Ω/km for 3×400mm²) - critical for long-distance mining grids
- Thermal Immunity: Nano-modified XLPE withstands 90°C continuous load, 250°C/5s short-circuit spikes, and UV/ozone degradation - extending service life in deserts and tropics
Triple-Shielded Defense Architecture
- EMI Neutralization: Optional copper tape screen blocks electromagnetic interference from substations, ensuring signal integrity for IoT grid sensors
- Sheath Armor: FR-PVC (IEC 60502 ST2) with 4.8mm thickness (3×400mm²) resists rock abrasion, salt spray, and termite infiltration - proven in Indonesia's monsoon tunnels

Extreme-Environment Performance

Threat Scenario	Shenghua Solution	Certified Performance
Seismic Cable Heave	Min. bending radius 12× OD (armored multi-core)	Absorbs 12G vibrations (deployed in Japanese bullet train tunnels)
Coastal Salt Corrosion	Hermetic XLPE seals + salt-neutralizing sheath	0.164Ω/km resistance (3×185mm²); 90°C operation in 95% humidity
Mining Rockfall	Steel-tape armor (YJV32) + impact-resistant filler	Survives 3-ton impacts; maintenance costs ↓45% in Zambia Copperbelt
Arctic Grid Freeze	Arctic-grade FR-PVC sheath (-40°C flexibility)	Passes IEC 62930 cold bend test at -40°C

Construction Details

Component	Specification
Conductor	Aluminum Conductor as per IEC 60228, Class 2 Circular or Shaped conductor Flexible conductor (class 5) optional
Insulation	XLPE (Cross-Linked Polyethylene) rated at 90°C, many color optional
Metallic Screen	Copper tape or copper wires braiding optional
Sheath	PVC or FR-PVC type ST2 to IEC 60502, black or red or customization

Technical Parameters

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20°C)	Testing Voltage A.C	Current Rating In air (A)	Current Rating In soil(A)
1 × 50	7/3.07	10.5	2.2	39.0	1449	0.641	91	170	165
1 × 70	19/2.20	10.5	2.4	41.0	1604	0.443	91	210	200
1 × 95	19/2.56	10.5	2.4	42.0	1767	0.320	91	255	240
1 × 120	19/2.86	10.5	2.4	44.0	1923	0.253	91	290	270
1 × 150	19/3.20	10.5	2.5	45.0	2103	0.206	91	330	305
1 × 185	37/2.52	10.5	2.5	47.0	2282	0.164	91	380	345
1 × 240	37/2.56	10.5	2.6	49.0	2584	0.125	91	435	400
1 × 300	61/2.56	10.5	2.7	51.0	2891	0.100	91	510	455
1 × 400	61/2.92	10.5	2.8	55.0	3325	0.0778	91	595	525
1 × 500	61/3.23	10.5	2.9	58.0	4076	0.0605	91	690	600
1 × 630	61/3.65	10.5	3	62.0	4305	0.0469	91	800	685
3 × 50	7/3.07	10.5	3.7	81.0	5778	0.641	91	145	170
3 × 70	19/2.20	10.5	3.8	84.0	6232	0.443	91	190	190
3 × 95	19/2.56	10.5	3.9	88.0	6824	0.320	91	215	230
3 × 120	19/2.86	10.5	4.0	91.0	7406	0.253	91	245	255
3 × 150	19/3.20	10.5	4.1	95.0	8165	0.206	91	280	295
3 × 185	37/2.52	10.5	4.2	98.0	8904	0.164	91	310	330
3 × 240	37/2.56	10.5	4.4	103.0	10270	0.125	91	365	380
3 × 300	61/2.56	10.5	4.5	108.0	11786	0.100	91	430	435
3 × 400	61/2.92	10.5	4.8	116.0	19346	0.0778	91	485	500

Packing and Shipping

We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

After-Service Commitment

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service.

Customer is God. We will cherish every client, every cooperation by heart.
Free pre-sales service. We will provide best proposal for each client.
Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning technical advisory service when establish cooperation relationship with clients.
Thoughtful after sales service. Our product are warranted by PICC (People's Insurance Company of China). We will provide free maintaining and debugging within 12 month after installation (except for the wrong using).
We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
24 hours hot-line telephone service. We will appoint professional person answer your question timely.

Frequently Asked Questions

Q: How long does it take to get a quote back?

A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.

Q: What warranties do your products carry?

A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows:

We guarantee that we will comply with the requirements of warranty period specified in the contract
We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models
The warranty shall remain valid for twelve (12) months after the Goods have been delivered to and accepted at the final destination
During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality

Q: Do you sell other products besides wire and cable?

A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
